Selecting the right dredge bucket for your excavation needs

A dredge bucket is the digging attachment on a mechanical dredge — the clamshell, grab, environmental or excavator bucket that scoops sediment off the bottom of a pond, harbor, canal or channel and lifts it clear of the water. Choosing the right dredge bucket comes down to four things: the material you are removing, the depth and reach you need, the machine carrying the bucket, and how you will move the spoil once it is out of the water. Get those right and a bucket dredge is one of the simplest, most dependable ways to remove solids and debris.

This guide explains how a dredge bucket works, the main bucket types, how to size one, and where a mechanical dredge is the right call versus a hydraulic or suction dredge — so you can match the equipment to the job instead of the other way around.

The Real Problem: Sediment, Access and Downtime

Sediment does not stay put. Silt, sand and organic solids settle in ponds, intakes, marinas and channels, cutting storage capacity, restricting flow and eventually forcing a shutdown for waterway maintenance. By the time dredging is on the schedule, the site usually comes with constraints: limited bank access, structures to work around, a narrow production window and nowhere convenient to put the spoil.

The wrong bucket makes all of that worse. A bucket that is too small turns a one-week job into three because every cycle moves less material. A bucket that is too large or the wrong type strains the excavator or crane, spills solids on the lift and stirs up turbidity that can breach a permit. And if the spoil handling is not planned, you rehandle the same material twice. The goal of picking a dredge bucket is to keep cycle times short, solids in the bucket and the machine inside its rating.

How a Dredge Bucket Works

A dredge bucket is mounted on an excavator, crane or barge and worked through a simple cycle: open the bucket, lower it to the bottom, close or curl it to bite into the sediment, lift the loaded bucket clear of the water, swing it over the spoil target, and dump. On a bucket dredger the spoil goes into a hopper barge alongside; on a shoreline job an excavator dredging setup drops it on the bank or into a truck. Because the cycle is mechanical, it handles debris, roots, rock and hard-packed material that would clog a pump.

Clamshell and Grab Buckets

Clamshell and grab buckets use two hinged jaws that close on the material. They are the workhorse of mechanical dredging — good for silt, sand and soft sediment, and precise enough to work close to docks, pilings and other structures. A grab bucket run on wire rope from a crane can reach greater depths than a rigid excavator arm.

Environmental (Sealed) Buckets

An environmental bucket is a closed clamshell with a level cut and sealed jaws. It is built to reduce spillage and re-suspension when you are removing contaminated or fine sediment and turbidity has to stay low. You trade some production speed for a cleaner lift and easier permit compliance.

Excavator Dredging Buckets

An excavator dredge bucket mounts on a standard or long-reach excavator sitting on the bank, a barge or a pontoon. It is the common choice for pond dredging equipment and small pond sediment removal because the machine is already on most sites and mobilizes fast. Reach and depth are limited by the boom, so it suits shallow, near-shore work more than open water.

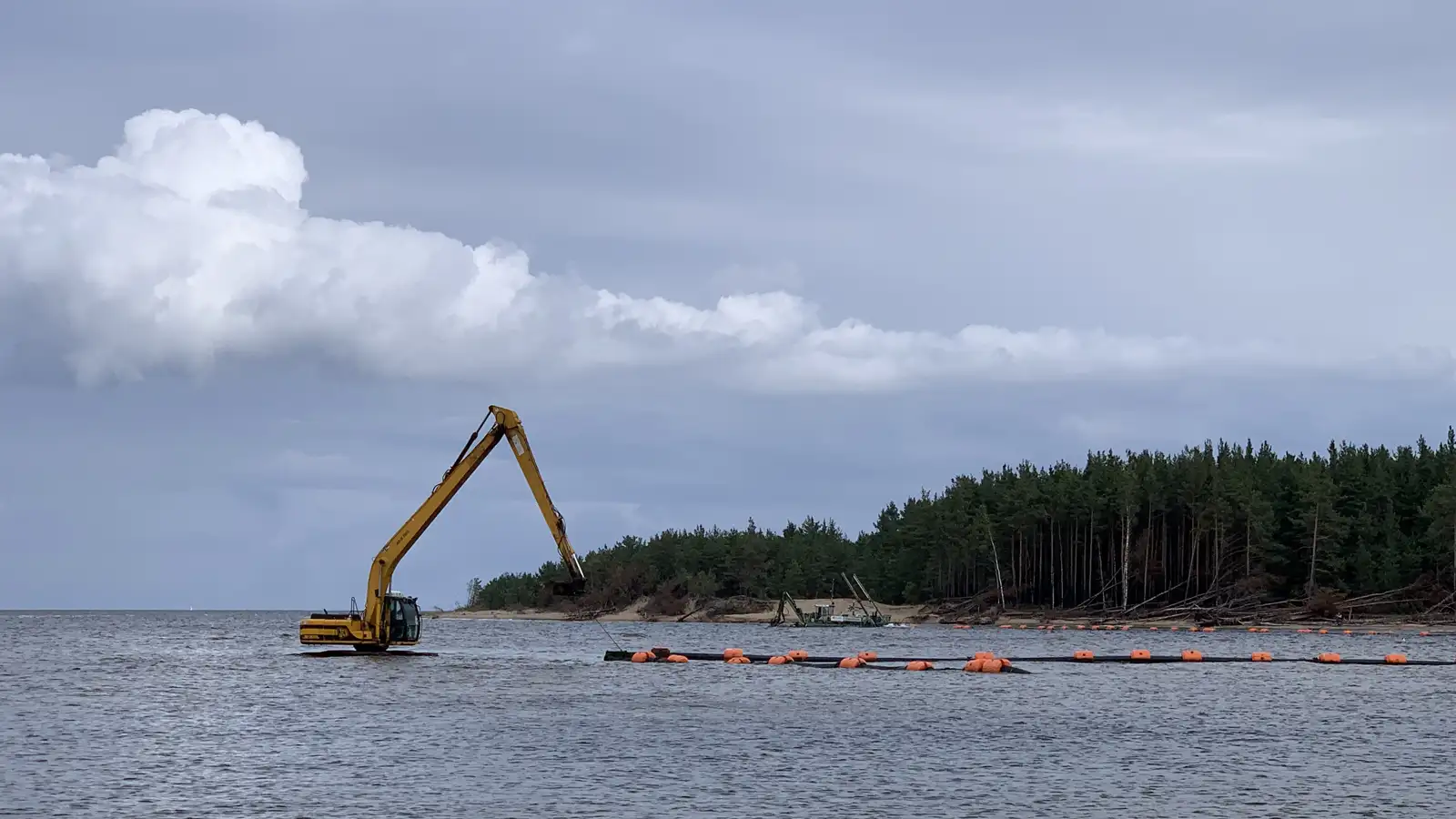

How to Select a Dredge Bucket: What to Evaluate

Before you pick a bucket type or size, work through the site and the material. These are the factors that actually change the decision:

• Material characteristics — silt, sand, clay, gravel or debris. Sticky clay and debris favor a rugged grab or excavator bucket; loose silt suits a clamshell.
• Solids concentration and slurry behavior — how the material holds together on the lift, and whether it will spill or re-suspend.
• Depth and reach — how deep the cut is and how far the machine has to reach. Crane-hung grabs go deeper; excavator arms are limited by boom length.
• Site and access limitations — bank access, overhead obstructions, structures to protect and how close you can stage the machine.
• Machine compatibility — the bucket must match the excavator or crane’s weight rating and hydraulics. An oversized dredge bucket capacity overloads the machine at reach.
• Spoil handling — where the material goes after the lift: barge, bank, dewatering pad or a pumped discharge line. This often decides the whole method.
• Production goals — target cubic yards per hour. Bucket size and cycle time set your throughput.
• Maintenance and total cost of ownership — wear parts, cutting edges and downtime over the life of the job, not just the purchase or rental price.

Dredge Bucket Types Compared

No single option wins every project. Use the table to match the method to your material, site and spoil plan.

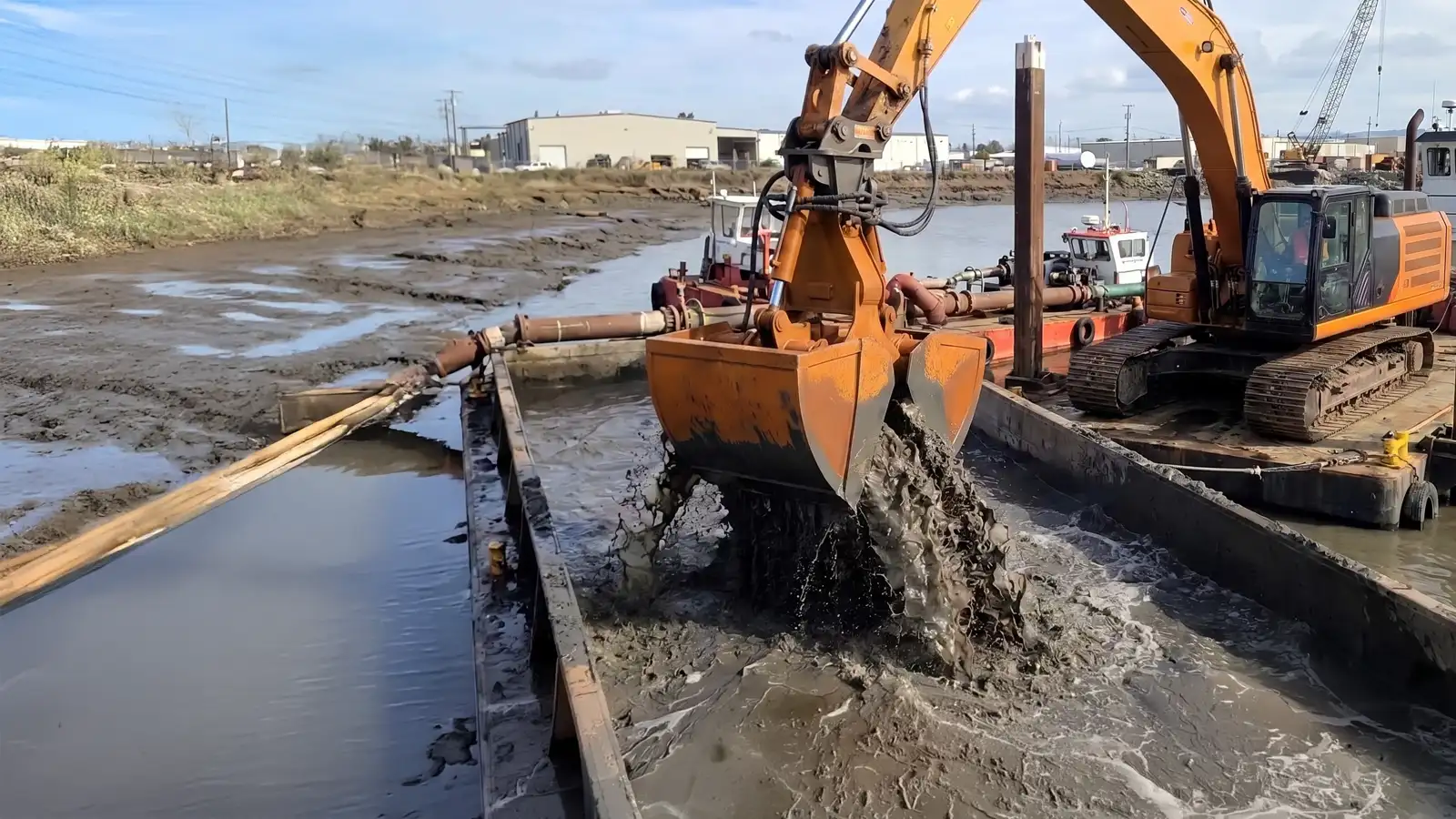

Where a Dredge Bucket Fits Best

A mechanical dredge bucket is the right tool when the material or the site works against a pump. It shines on debris-laden bottoms, hard-packed or coarse material, deep cuts, confined water near structures, and cold-weather work. For small pond sediment removal, marina cleanouts and industrial pond sediment removal, an excavator dredging setup is often the fastest, lowest-cost approach.

It is the wrong tool when you have a large volume of fine, pumpable sediment and a place to send it. When production has to run continuously and the spoil can travel a long distance, a hydraulic or cutter-suction dredge that pumps slurry through a floating pipeline will out-produce any bucket. Many projects use both — a bucket dredge for debris and hard spots, and a suction dredge for the bulk fine material.

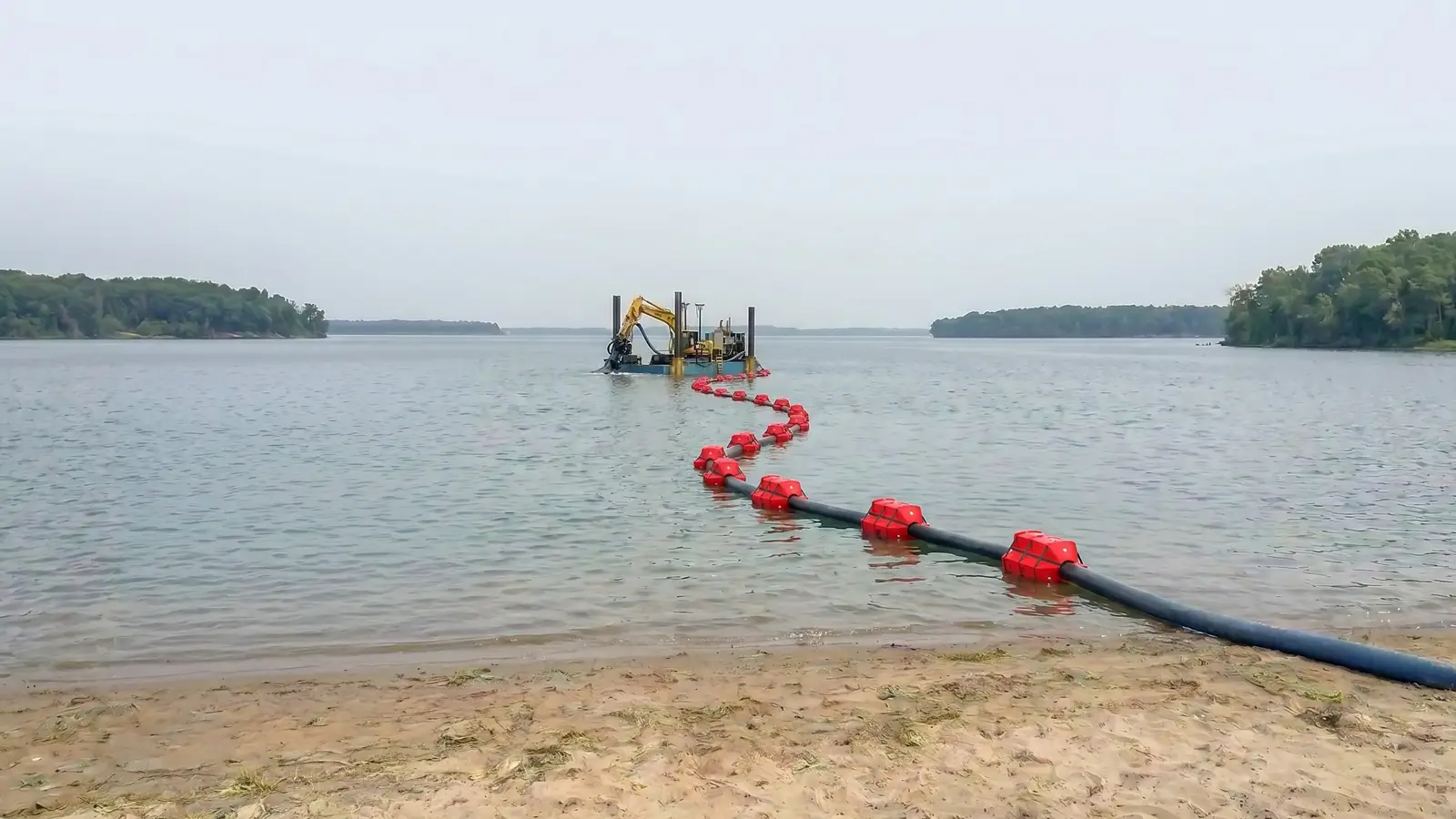

Where EZ Connect Fits In

EZ Connect builds the floats, not the buckets — and the two work together more often than people expect. The moment a dredging project moves spoil through a pumped discharge line, or pairs a bucket dredge with a hydraulic booster to move fine material off-site, that discharge or slurry pipe and any suction hose have to stay on the surface. If the line sinks, it kinks, drags and stops the job.

EZ Connect modular HDPE pipe floats and hose floats clamp onto the dredge discharge pipe and keep it floating across open water, sized to your pipe’s outside diameter and the buoyancy the loaded, slurry-filled line needs. They install in minutes with a stainless steel ratchet, use no foam fill, and are built from marine-grade HDPE for dredging, mining and marine construction. If your dredge plan includes a floating pipeline, our dredge pipe floats keep that side of the operation running.

Dredge Bucket FAQs

What is a dredge bucket?

A dredge bucket is the digging attachment on a mechanical dredge that scoops sediment, sand or debris from the bottom of a body of water and lifts it out. Common types are the clamshell, grab, environmental and excavator bucket.

How does a dredge bucket work?

It runs on a cycle: open, lower to the bottom, close on the material, lift clear of the water, swing over the spoil target and dump into a barge, onto the bank or into a truck. Being mechanical, it handles debris and hard material a pump cannot.

What size dredge bucket do I need?

Size the bucket to the machine, not just the job. The dredge bucket capacity has to stay within the excavator or crane’s rating at full reach, then be as large as that allows to hit your production target. Oversizing overloads the machine; undersizing adds cycles. Share your machine, depth, reach and material and a supplier can size it for you.

What is the difference between a dredge bucket and a clamshell?

A clamshell is a type of dredge bucket. “Dredge bucket” is the general term for the attachment; a clamshell is the specific two-jaw design most often used for it. Grab, environmental and excavator buckets are other dredge bucket types.

What is a bucket dredge or bucket dredger?

A bucket dredge (or bucket dredger) is the complete machine — a crane or excavator on a barge or bank fitted with a dredge bucket, usually working alongside a hopper barge that carries the spoil away.

Is a dredge bucket better than a suction dredge?

Neither is better for every project. A dredge bucket wins on debris, coarse or hard-packed material, deep or confined sites and cold weather. A suction dredge wins on high-volume fine sediment that can be pumped a long distance continuously. Match the tool to the material and the spoil plan.

What materials can a dredge bucket handle?

Silt, sand, clay, gravel, rock and debris such as roots and rubble. Sticky clay and debris favor a rugged grab or excavator bucket; loose silt and fine sediment suit a clamshell or an environmental bucket where turbidity control matters.
